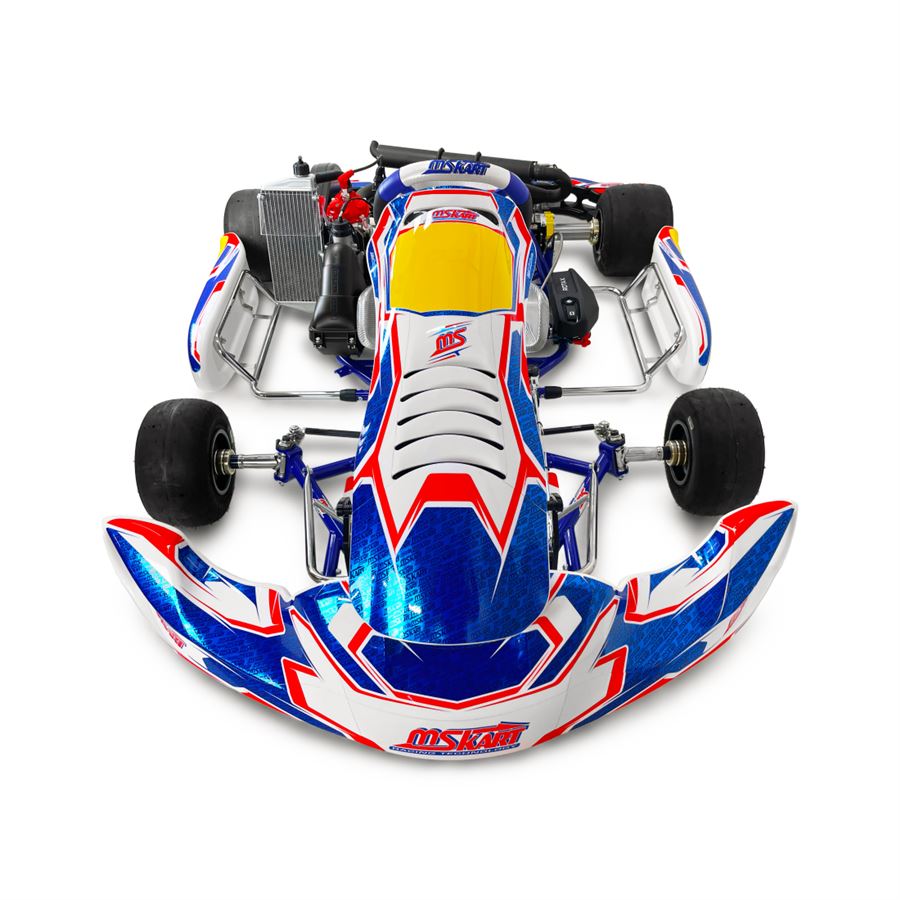

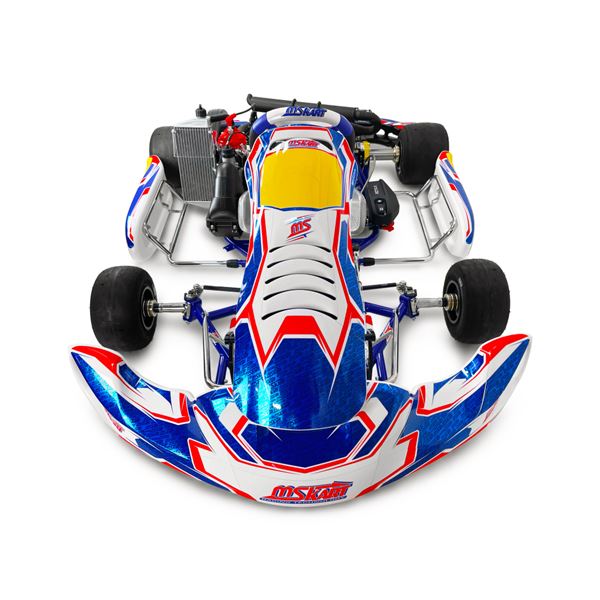

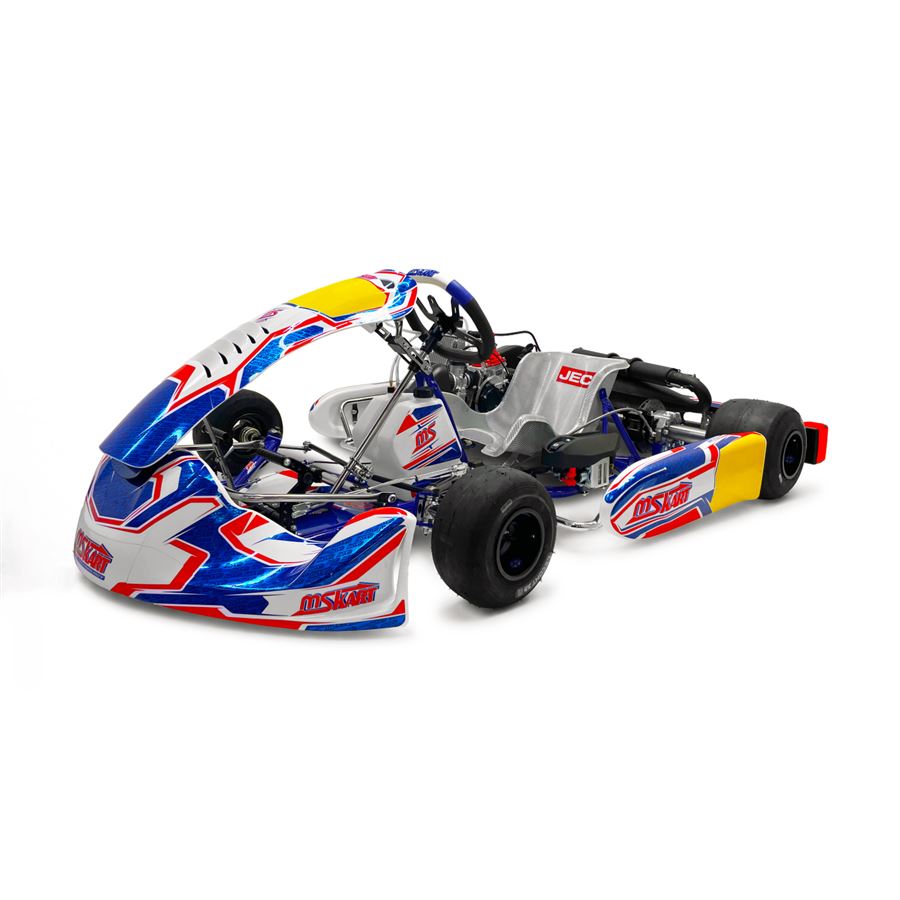

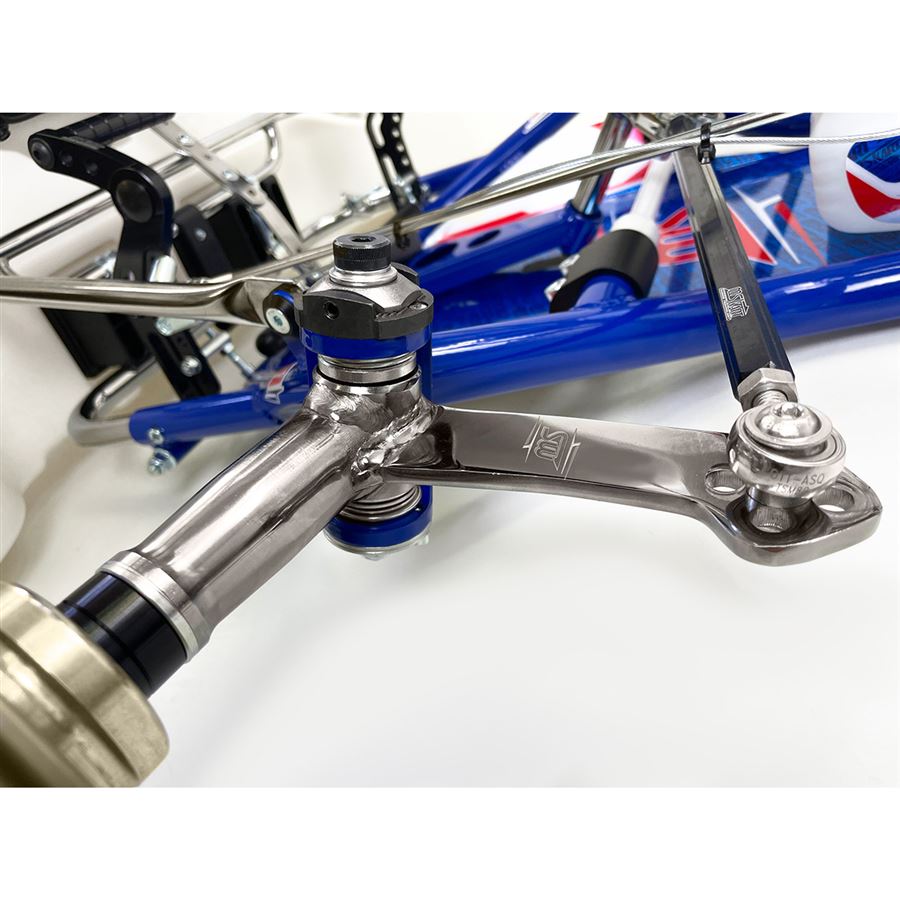

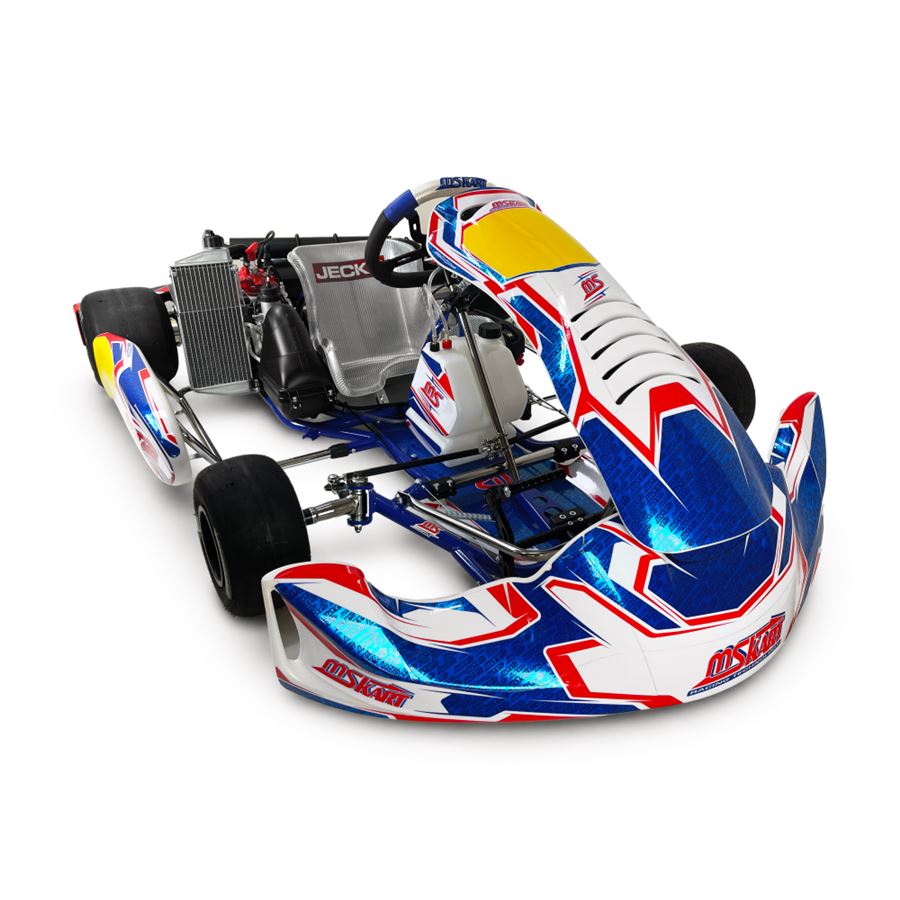

The Blue Phoenix chassis has international CIK/FIA homologation valid for all categories (homologation number 008-CH-02). The frame of diameter 300 m is made of high quality chrome-molybdenum steel tubes. The latest version of the frame has a modified front axle geometry which enables both a more variable adjustment of the rear end ground clearance and the set up of the stub axles height. New for 2025 is the option of an adjustable wheelbase of 1045 +/-10 mm and new rear axle bearing housings. It is very easy to set up the camber castor of the front wheels by using the popular Sniper adjusters. An other new feature is the EL.ZET hydraulic brake system with self-ventilated floating brake disc. The KG 509/507 bodywork in combination with the latest design of MS KART stickers provides the MS Blue Swift EVO chassis an attractive look.
Chassis Technical Data:
Frame: 25CrMo4 Ø 30 mm
Wheelbase: 1045 mm
Rear axle: Ø 50 mm x 1040 mm
Engine Technical Data:
RACE CLASS: Leisure / Club / National or international
MAXIMUM PERFORMANCE: 22 kW / 30 hp at 11.500 rpm
MAXIMUM TORQUE: 21 Nm at 9.000 rpm
WEIGHT bare engine: 12,0 kg / 26,5 lbs
WEIGHT with complete power pack: 23,1 kg / 51,0 lbs
SPECIAL FEATURES: Cylinder with electronically controlled exhaust valve
Standard equipment:

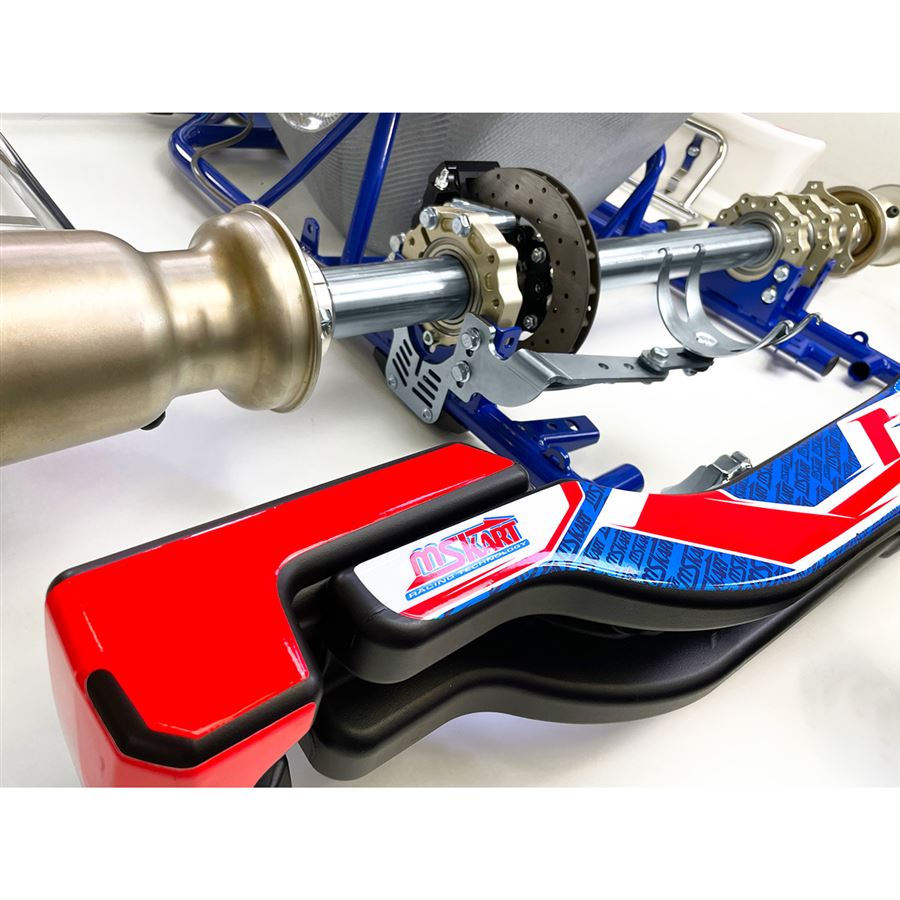

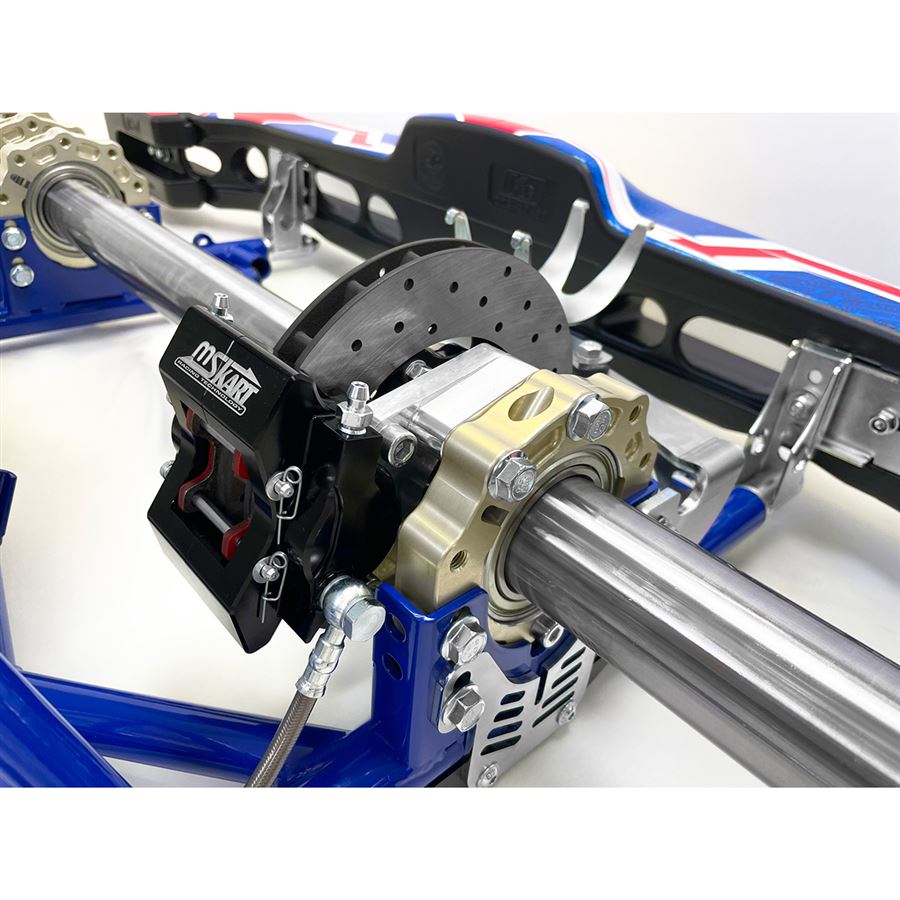

- hydraulic self-adjusting EL.ZET brakes

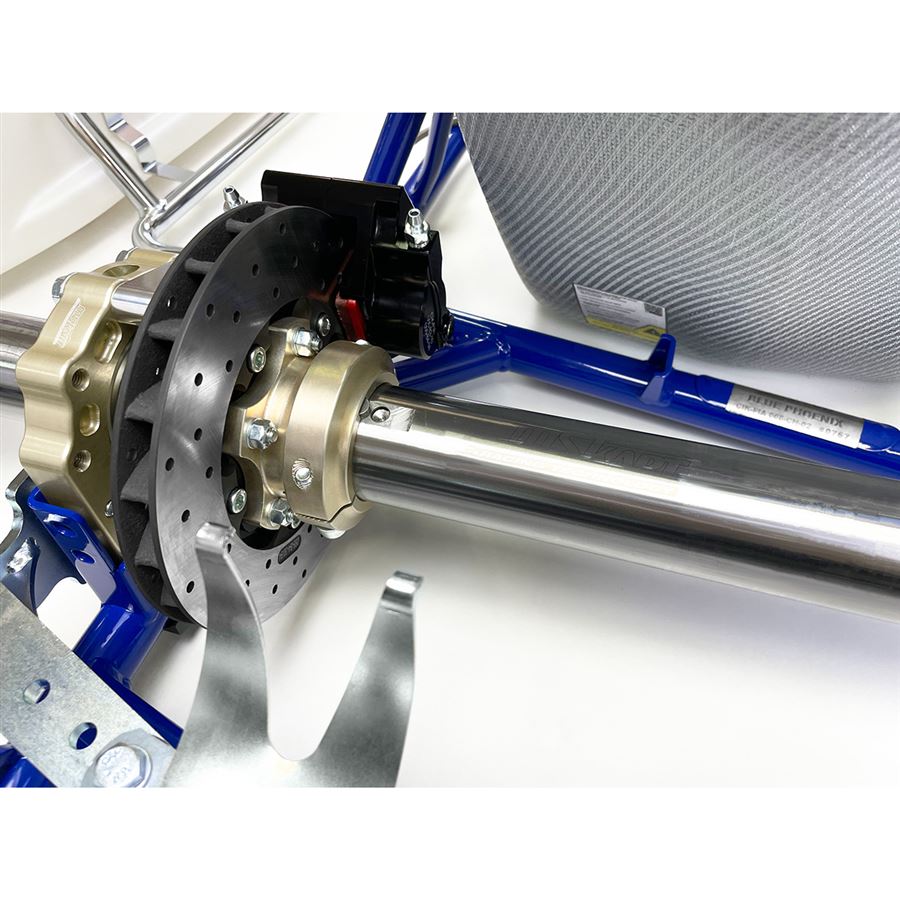

- EL.ZET self-ventilated brake discs
- rear axle of 3 different hardnesses (soft MS38, medium MS53, hard MS67)

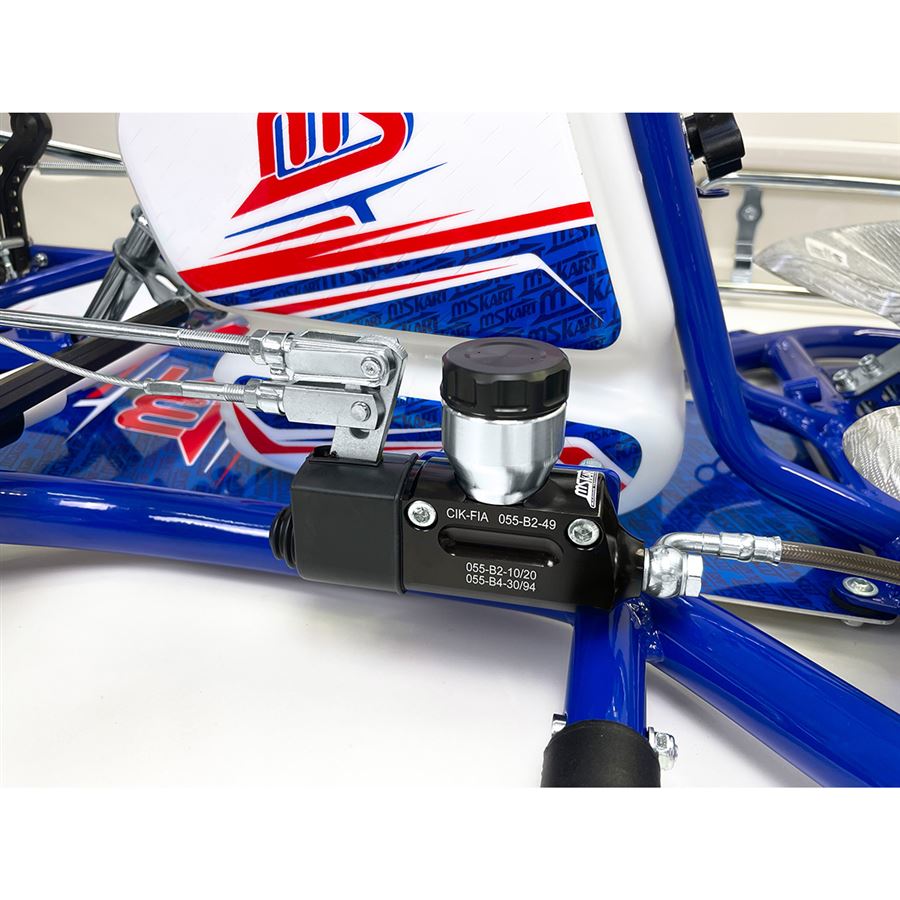

- manual adjustment of brake pressure on the front and rear axle
- KG bodywork model 509/507 CIK
- rear plastic spoiler KG model C3 CIK

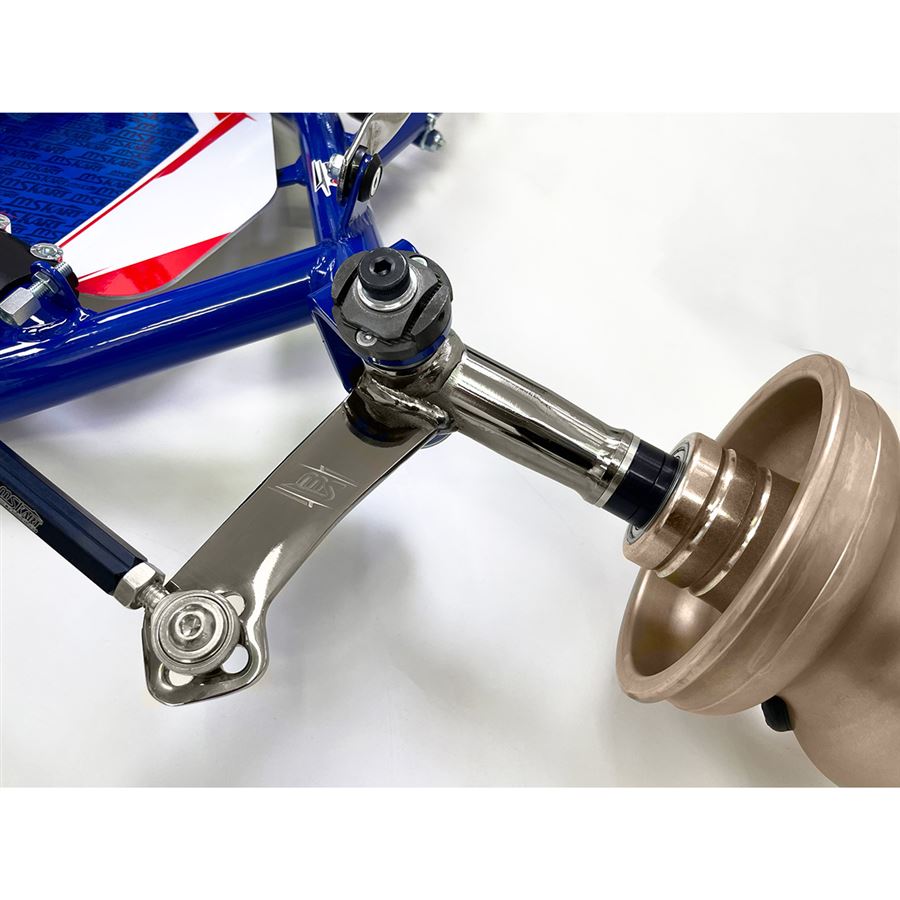

- Sniper adjusters
- adjustable front and rear ground clearance
- aluminum wheel rims
- aluminium adjustable pedals
- MS KART steering wheel model KG M7 Ø 330 or M6 Ø 345 mm

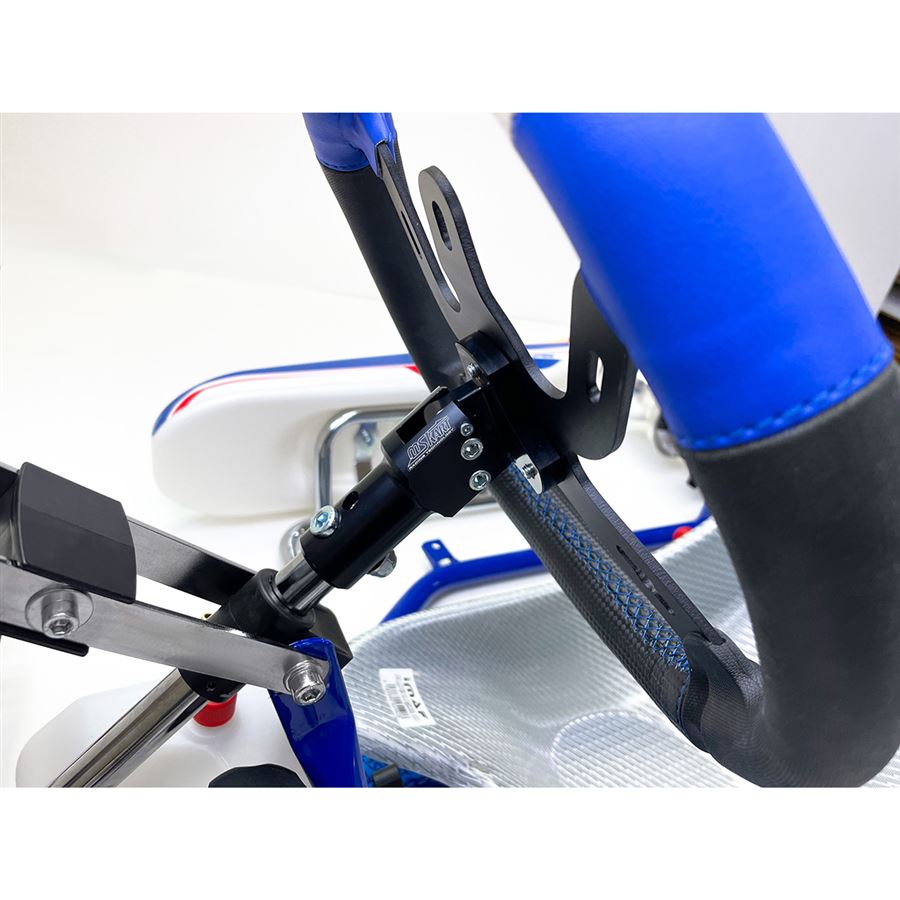

- adjustable steering wheel boss (5 positions)
- IMAF fiberglass seat
- aluminum floor tray including MS KART sticker
Additional equipment:
- front and rear torsion bar for variable chassis stiffness set up
- magnesium wheel rims
- MS KART bodywork stickers

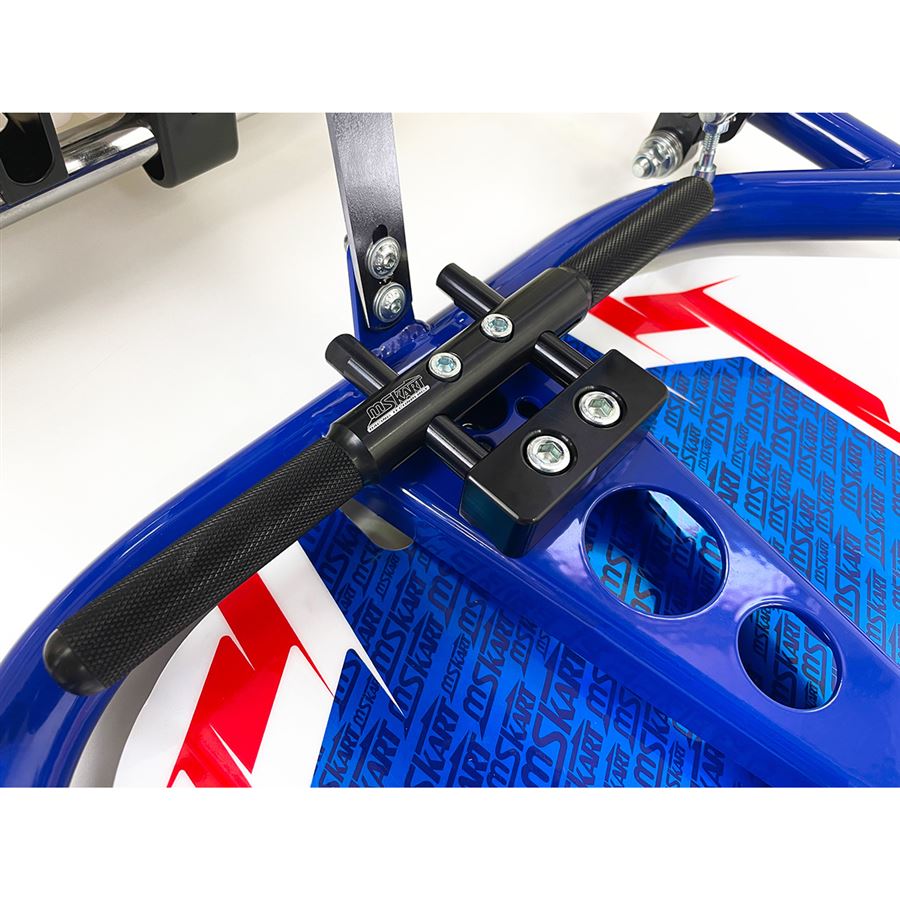

- aluminum foot rest
- radiator
- water pump
- JECKO seat
- carbon-kevlar floor tray
- carbon-kevlar seat or combined fiberglass/carbon-kevlar seat

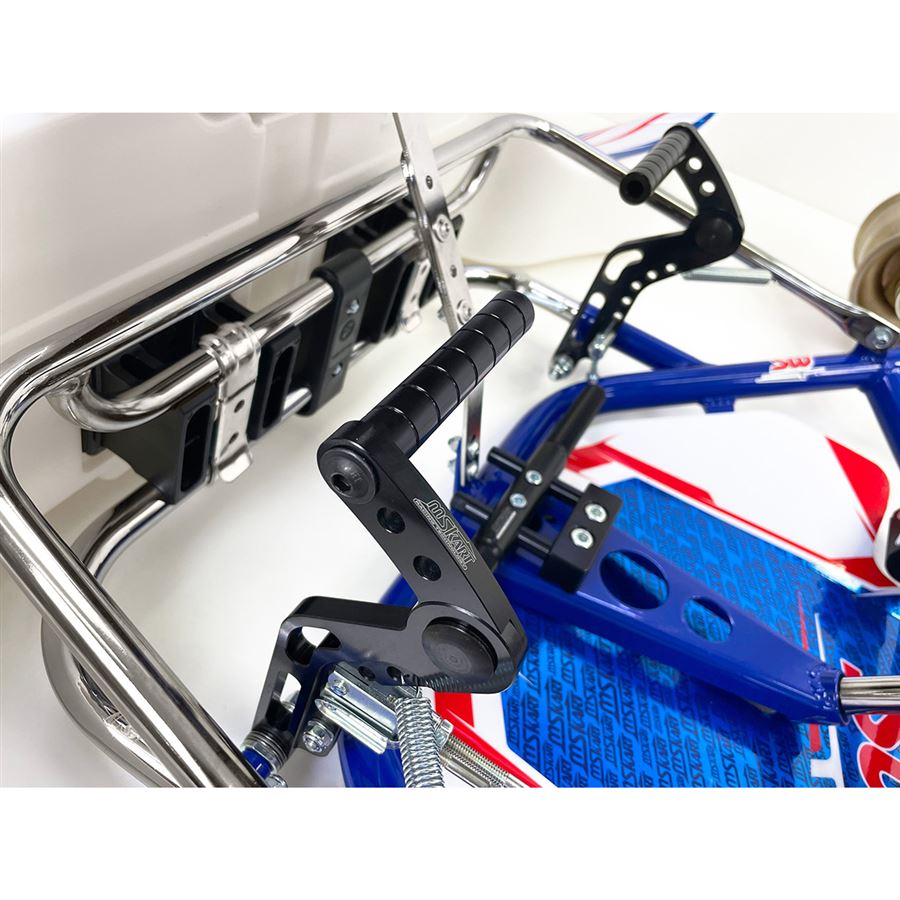

- pedal extension kit
TIP:
The innovative design of pedal extension kit allows simple and variable adjustment of the distance between pedals and the driver´s seat.
