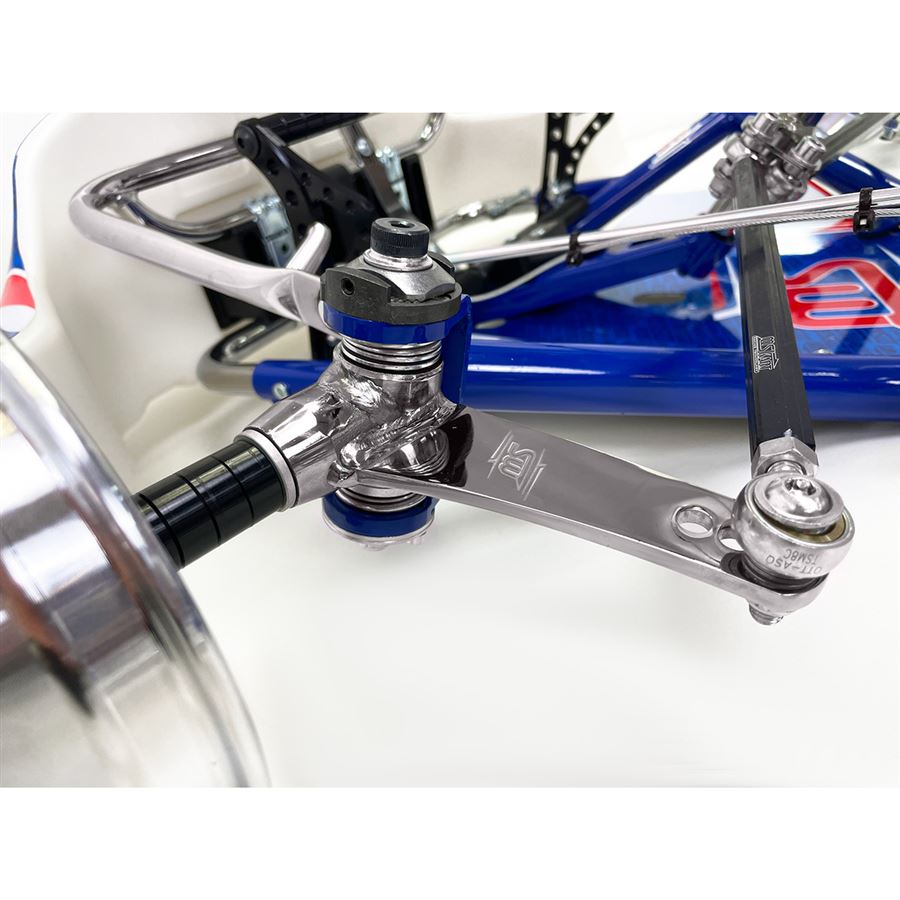

The new MINI Blue Kite chassis has international CIK-FIA homologation No. 008-CH-54 and it is made of high-quality chrome-molybdenum tubes with a diameter of 28 mm. The latest version of the frame with a wheelbase of 950 mm features a modified geometry in the front as well as a new type of rear axle bearing housing holders. This allows not only a more variable adjustment of the ground clearance of the rear axle, but also adjustment of the front axle height. The set up of camber castor of the front axle is very easy thanks to popular Sniper adjusters. There is the EL.ZET. Mini hydraulic brake system model with self-ventilated floating brake disc mounted on the chassis. The KG MK27/MK20 CIK bodywork as well as the latest design of MS KART stickers provides the Blue Kite MINI chassis an attractive look.
Chassis technical data:
Frame: 25CrMo4 Ø 28 mm
Wheel base: 950 mm
Rear axle: Ø 30mm x 950 mm
Engine technical data:
RACE CLASS: Leisure / Club / National or international
MAXIMUM PERFORMANCE: 7 kW / 9.5 hp at 7.000 rpm
MAXIMUM TORQUE: 10.8 Nm at 6.000 rpm
WEIGHT bare engine: 11,8 kg / 26,0 lbs
WEIGHT with complete power pack: 21,5 kg / 47,5 lbs
SPECIAL FEATURES: Junior cylinder without exhaust valve, restricted exhaust socket, radiator and exhaust that fit special cadet chassis
Standard equipment:
- hydraulic brake EL.ZET MINI (homologated CIK-FIA)
- EL.ZET self-ventilated floating brake disc
- bodywork KG model MINI MK27/MK20 CIK
- rear plastic spoiler KG model HULK CIK
- Sniper adjusters
- adjustable front and rear ground clearance
- aluminum wheek rims
- aluminium pedals MINI
- MS KART steering wheel KG M7 Ø 330 or M6 Ø 345 mm
- adjustable steering wheel boss (5 positions)
- IMAF fiberglass seat
- aluminum floor tray including MS KART sticker
Additional equipment:
- magnesium wheel rims
- JECKO seat
- rear plastic spoiler with adjustable width model KG TRIS CIK
- bodywork stickers MS KART
- aluminum foot rest
- pedal extension kit model MINI

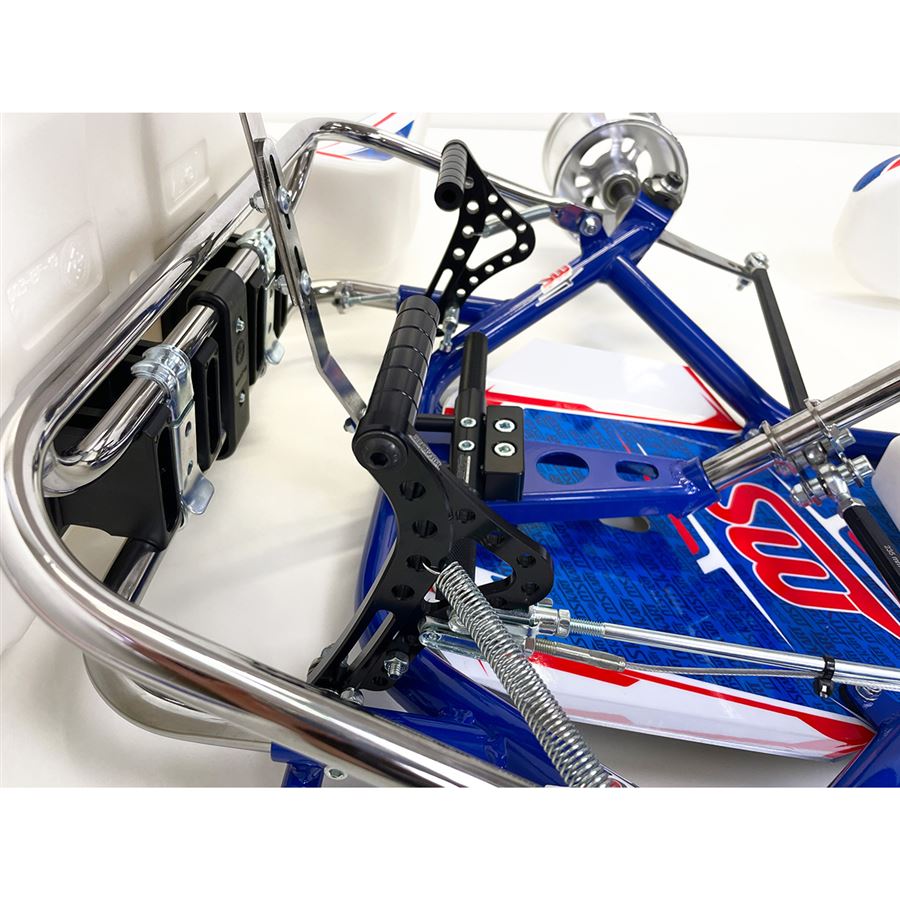

TIP:
The innovative design of pedal extension kit allows simple and variable adjustment of the distance between pedals and the driver´s seat. The combination of the pedal kit with the latest model of aluminum MINI pedals is a guarantee of optimal adjustment of the pedal position even for the smallest racers.
