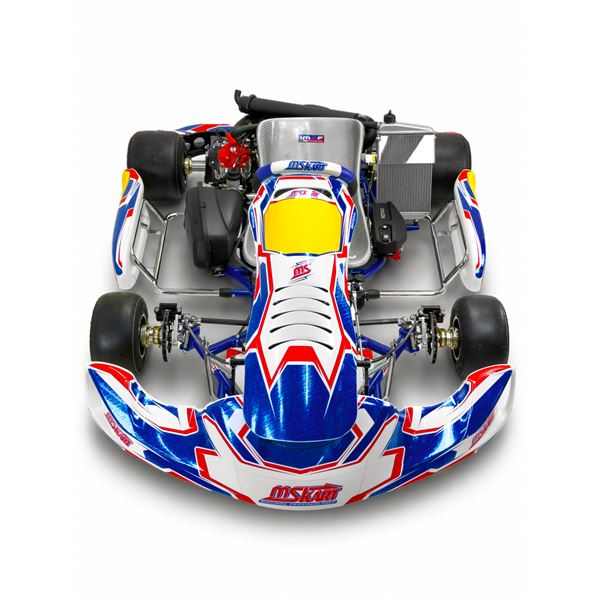

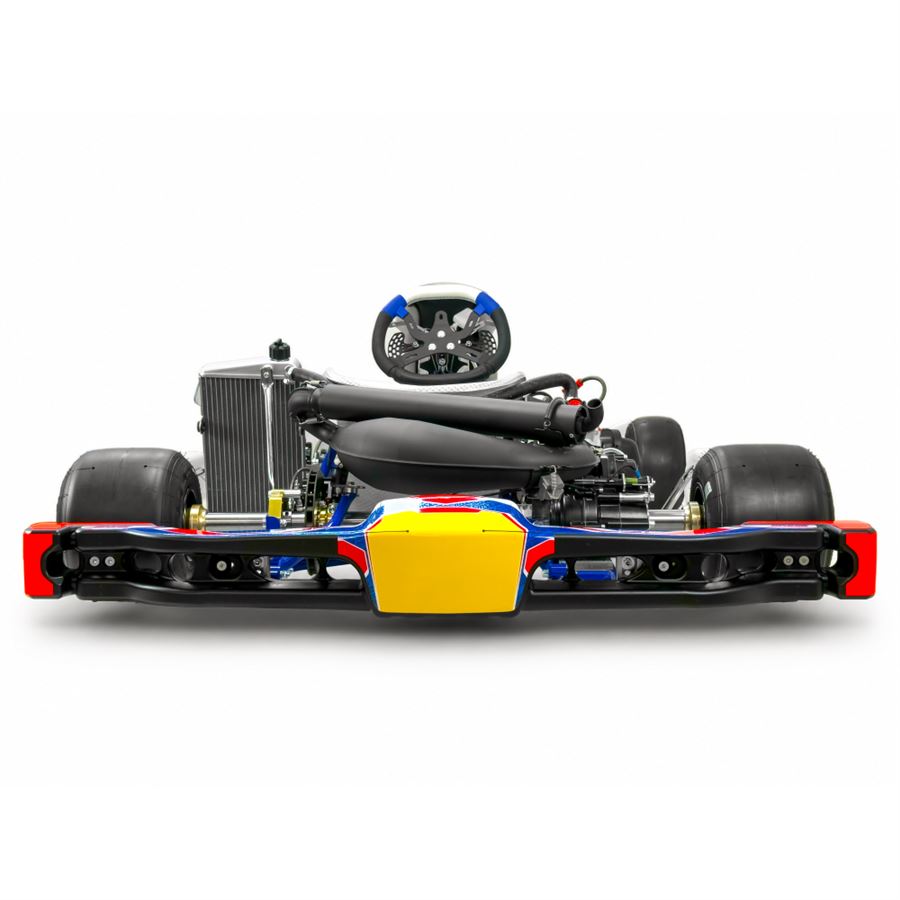

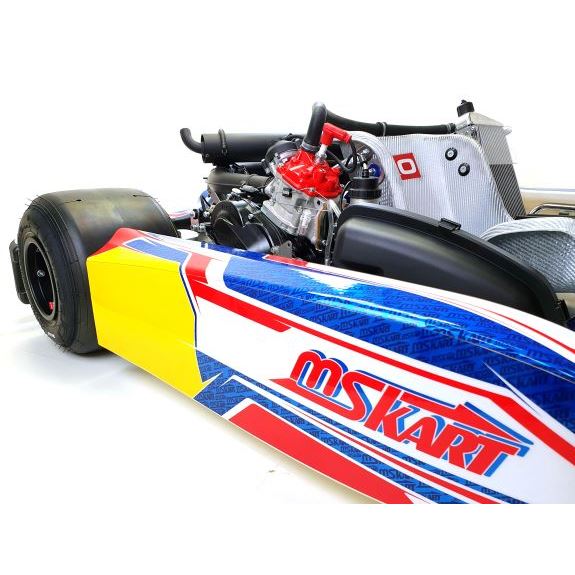

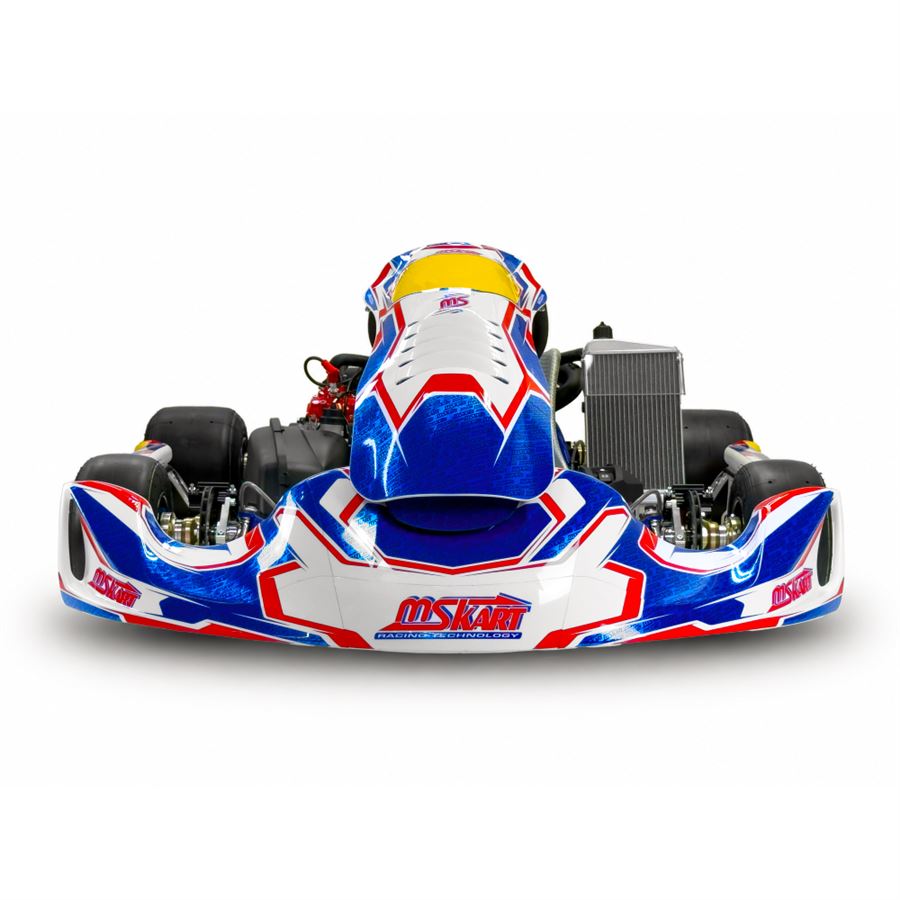

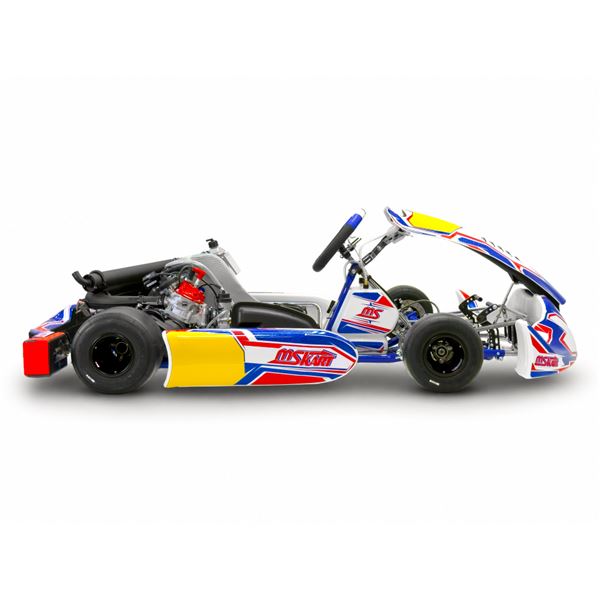

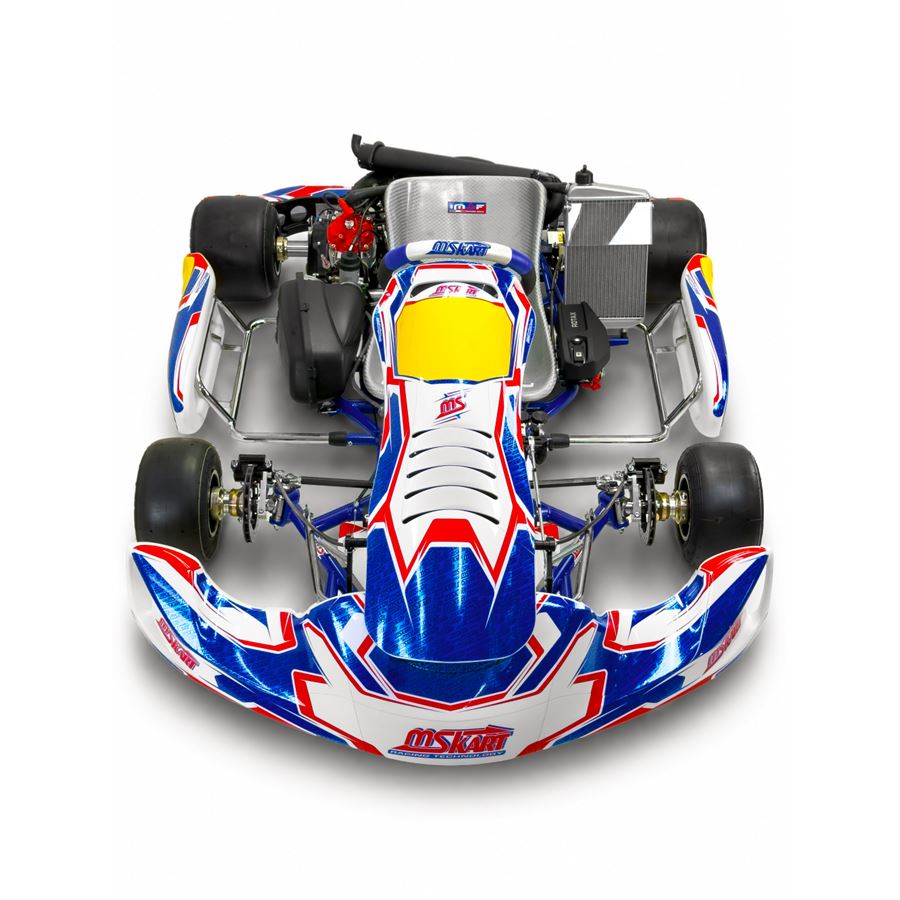

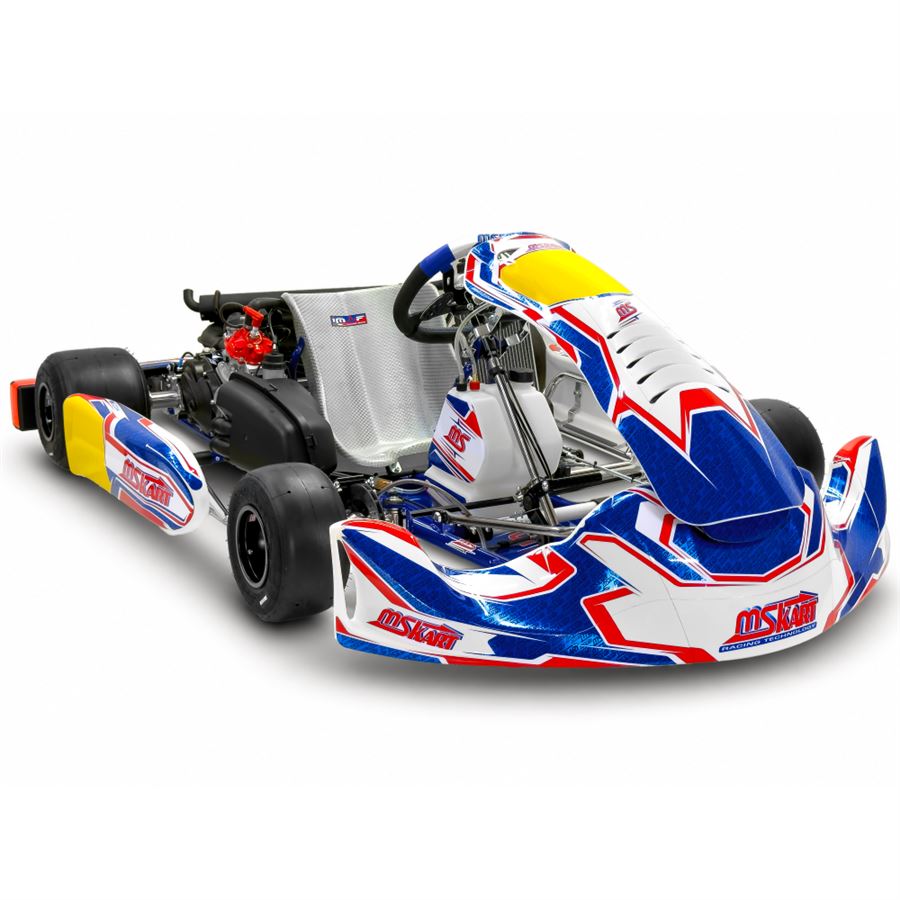

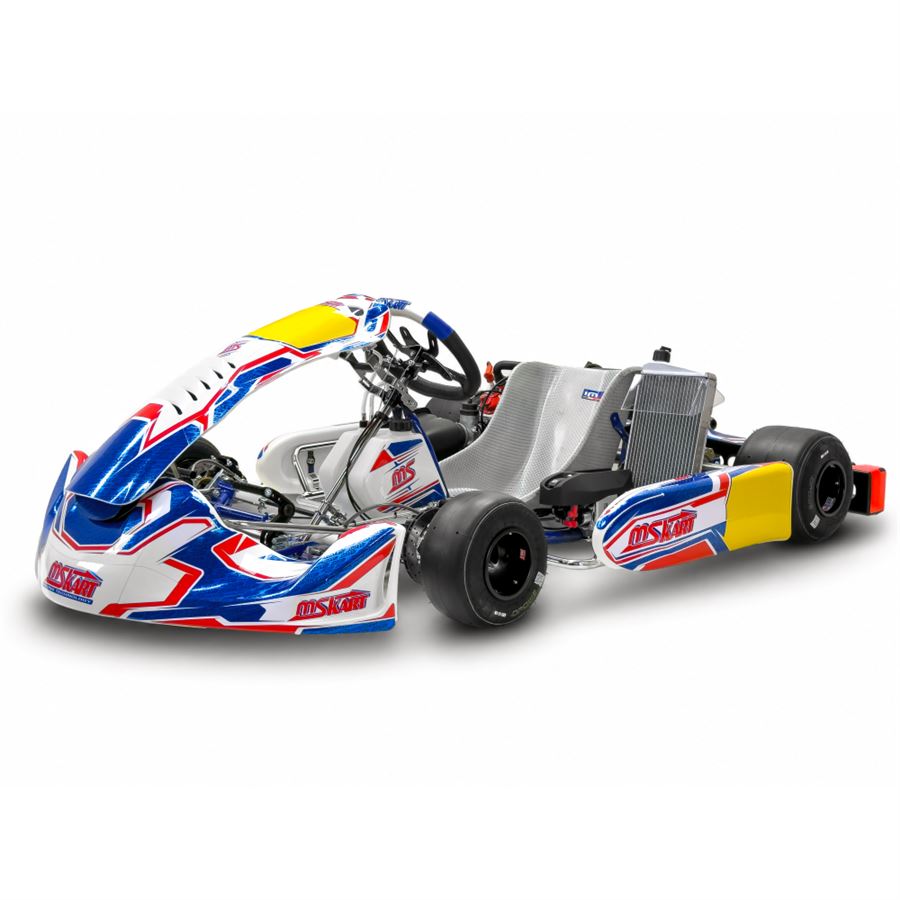

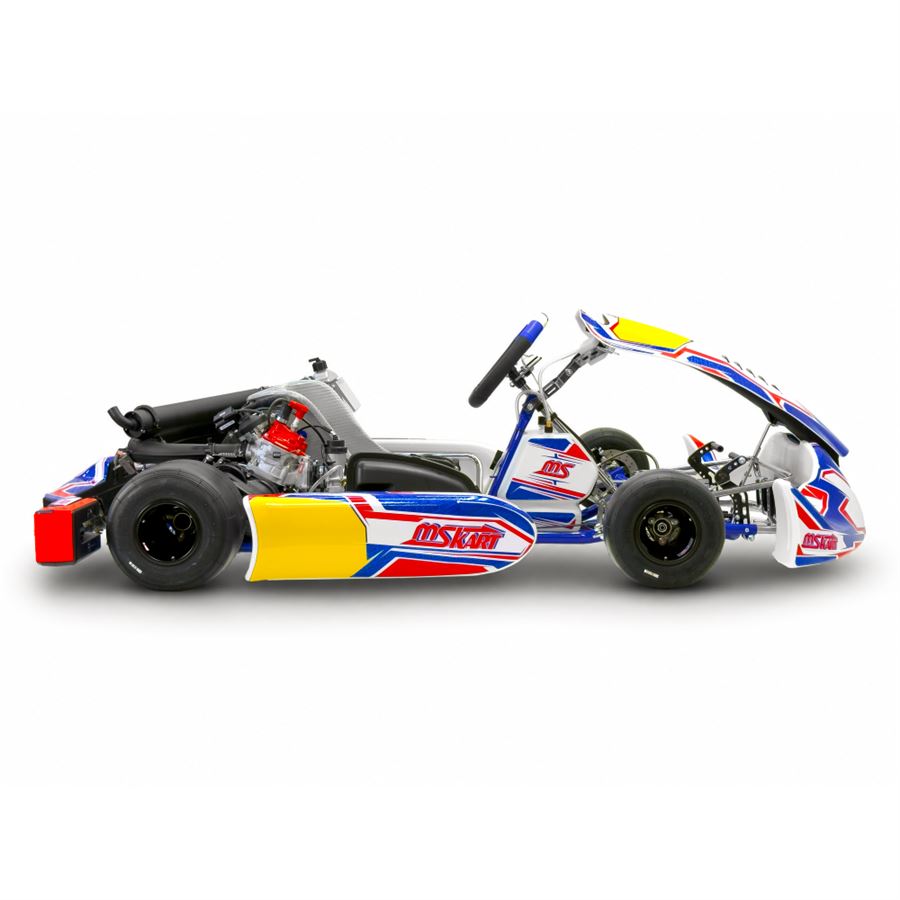

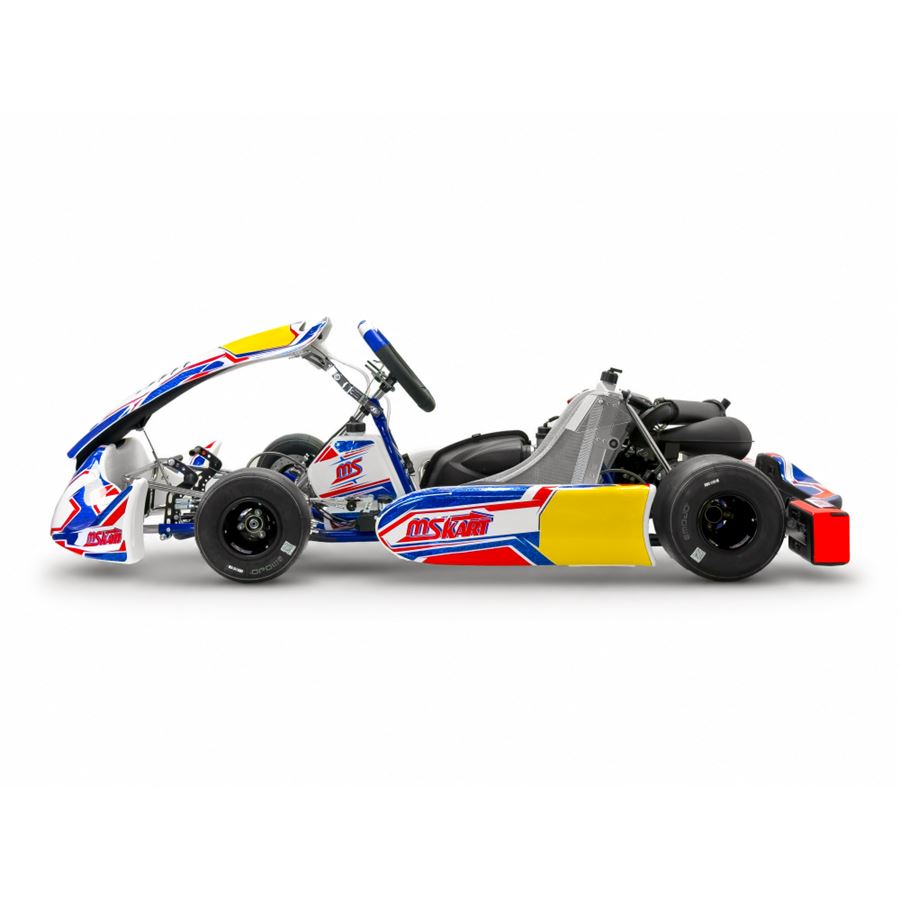

The Blue Phoenix chassis has international CIK/FIA homologation valid for all categories (homologation number 008-CH-02). The frame of diameter 30 mm is made of high quality chrome-molybdenum steel tubes. The latest version of the frame has a modified front axle geometry which enables both a more variable adjustment of the rear end ground clearance and the set up of the stub axles height. It is very easy to set up the camber castor of the front wheels by using the popular Sniper adjusters. An other new feature is the EL.ZET hydraulic brake system with self-ventilated floating brake disc. The KG 509/507 bodywork in combination with the latest design of MS KART stickers provides the MS Blue Phoenix chassis an attractive look.

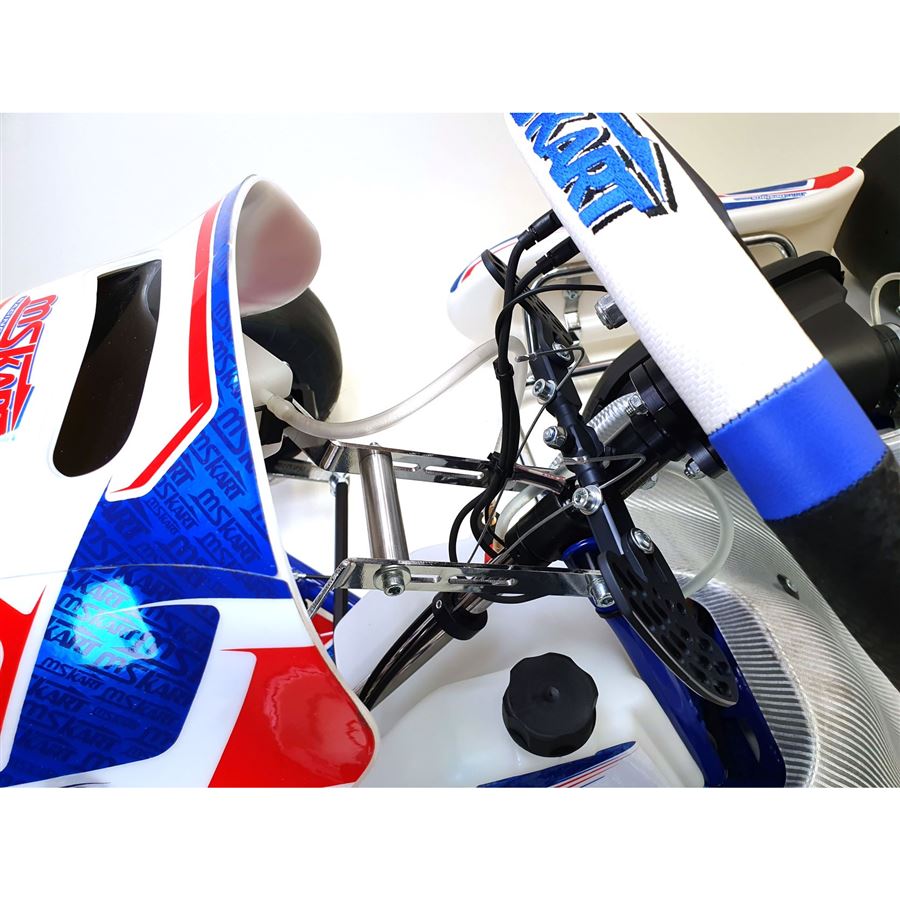

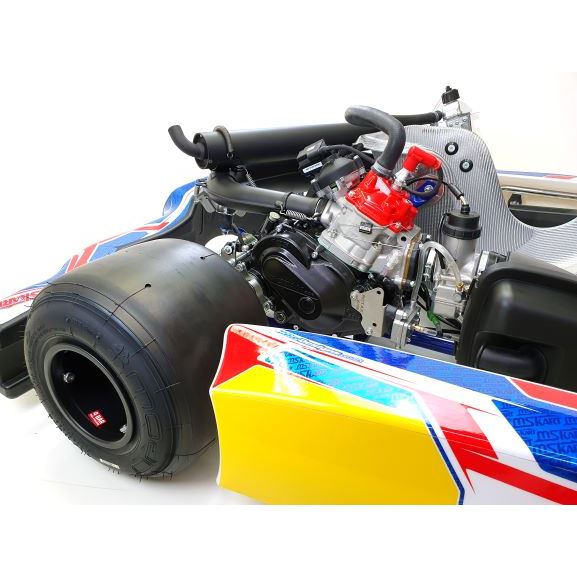

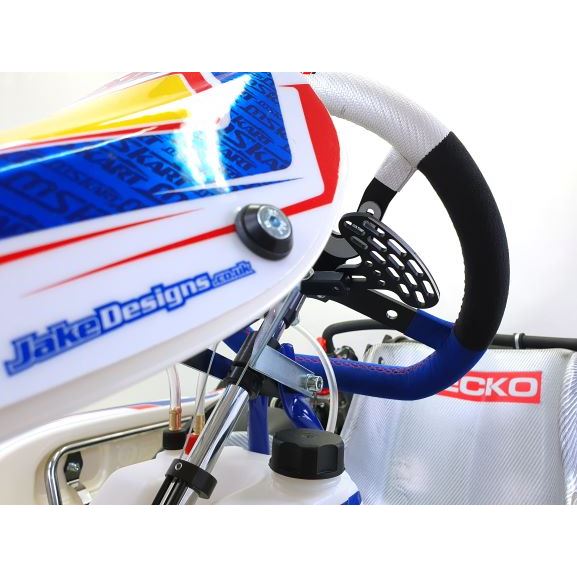

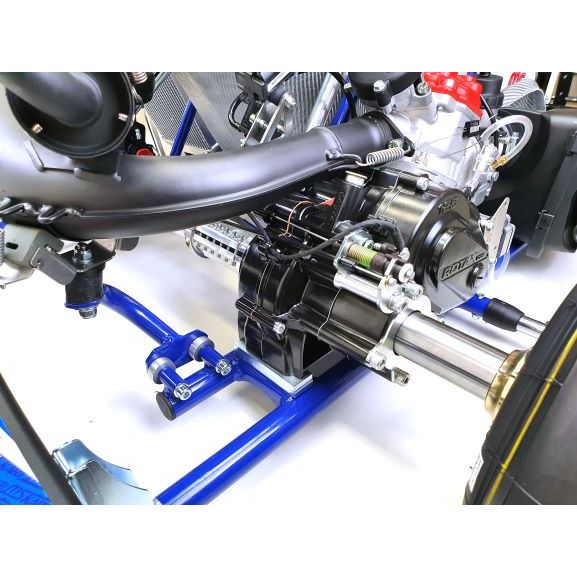

"Chainless painless". The 125 MAX DD2 combines a revolutionary chainless drive with a 2-speed gearbox operated directly from the steering wheel using shift paddles. It's perfect for people with kart racing experience and ambitious leisure karters. This engine takes you as close to Formula car racing as you can get. Launched in 2002, this engine paved the way for new chassis developments from all leading manufacturers.
Chassis Technical Data:
Frame: 25CrMo4 Ø 30 mm
Wheelbase: 1045 mm
Rear axle: Ø 40 mm x 1040 mm
Engine Technical Data:
RACE CLASS: Leisure / Club / National or international
MAXIMUM PERFORMANCE: 25 kW / 34 hp at 12,000 rpm
MAXIMUM TORQUE: 22 Nm at 10,500 rpm
WEIGHT bare engine: 16,8 kg / 37,0 lbs
WEIGHT with complete power pack: 28,8 kg / 63,5 lbs
SPECIAL FEATURES: Chainless drive system, 2-speed gearbox, operated by shift paddle from the steering wheel, cylinder with electronically controlled exhaust valve
Standard equipment:
- hydraulic self-adjusting EL.ZET brakes
- EL.ZET self-ventilated brake discs
- rear axle of 3 different hardnesses
- manual adjustment of brake pressure on the front and rear axle
- KG bodywork model 509/507 CIK
- rear plastic spoiler KG model C3 CIK
- Sniper adjusters
- adjustable front and rear ground clearance
- aluminum wheel rims
- aluminium adjustable pedals
- MS KART steering wheel model KG M7 Ø 330 or M6 Ø 345 mm
- IMAF fiberglass seat
- aluminum floor tray including MS KART sticker
Additional equipment:
- front and rear torsion bar for variable chassis stiffness set up
- magnesium wheel rims
- MS KART bodywork stickers
- aluminum foot rest
- JECKO seat
- carbon-kevlar floor tray
- carbon-kevlar seat or combined fiberglass/carbon-kevlar seat
- pedal extension kit
